Back order now and get all the attachments for FREE, including: grading bucket, claw, thumb, canopy, rake, pallet forks. Contact us for the ETA.

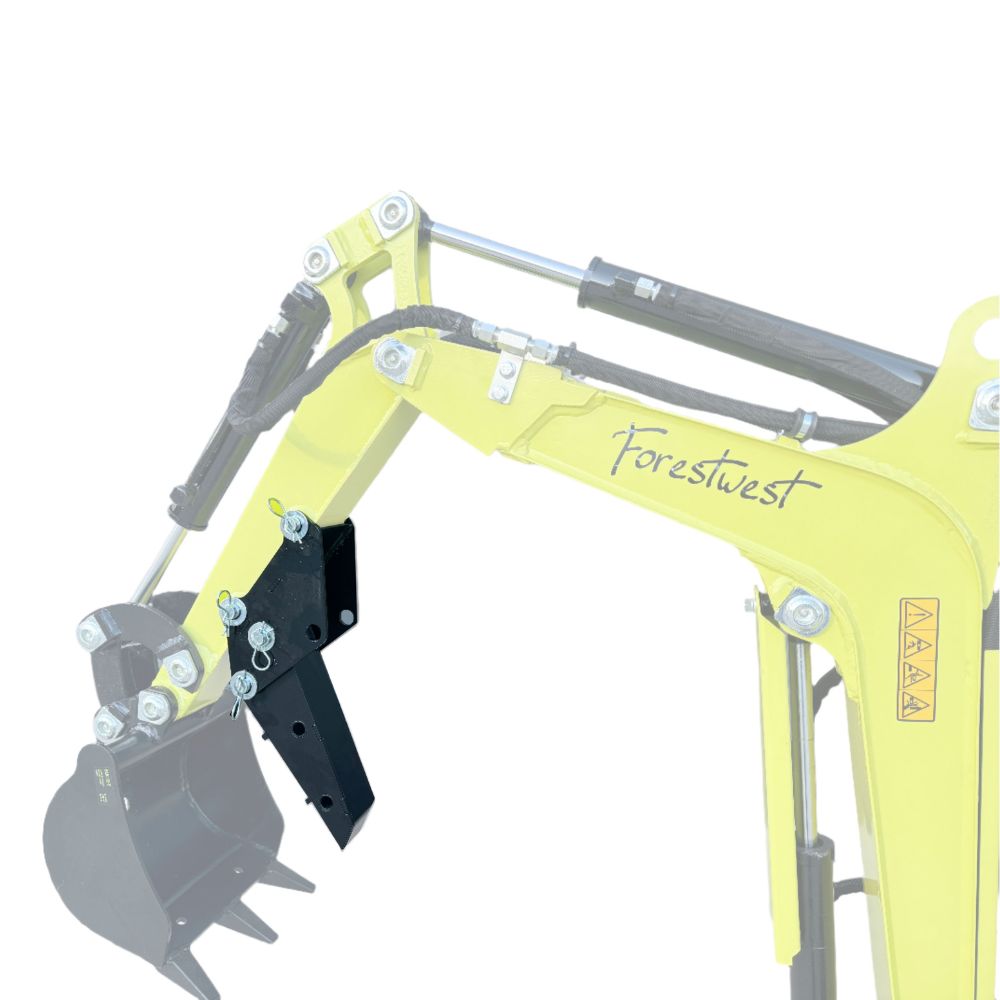

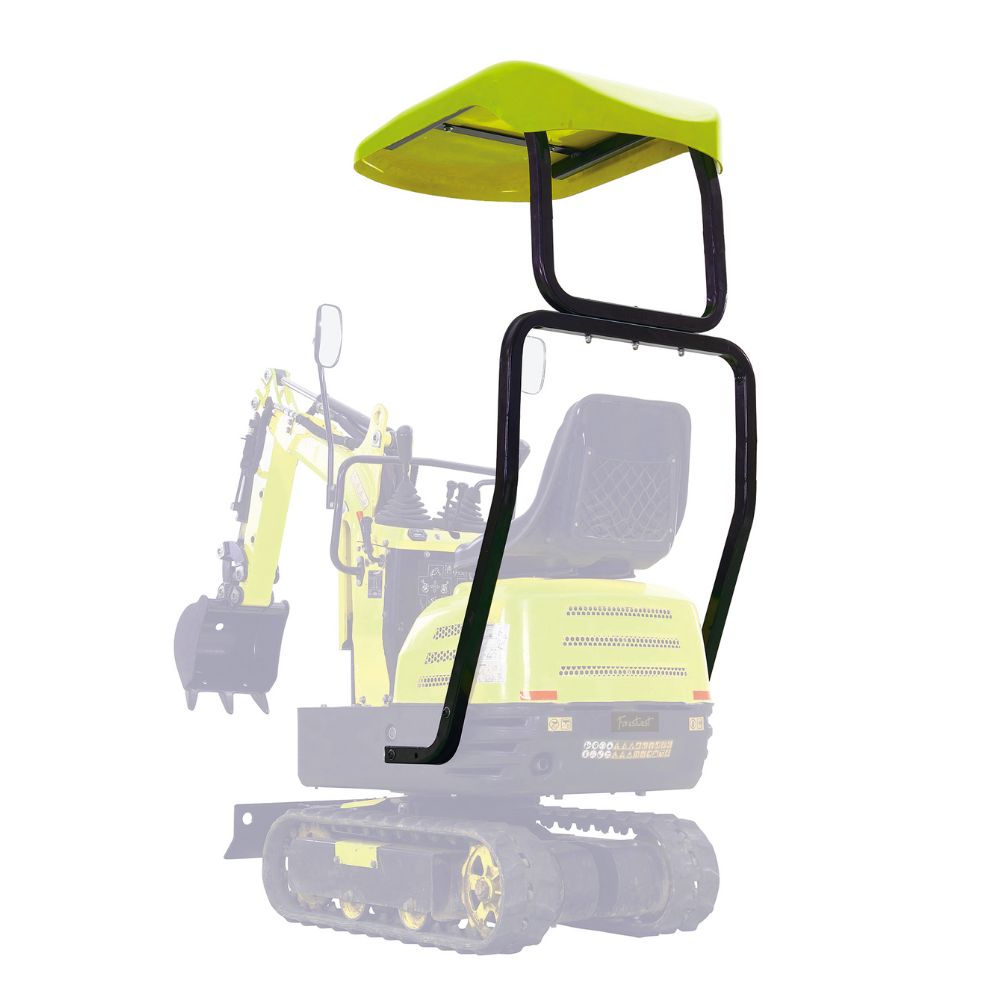

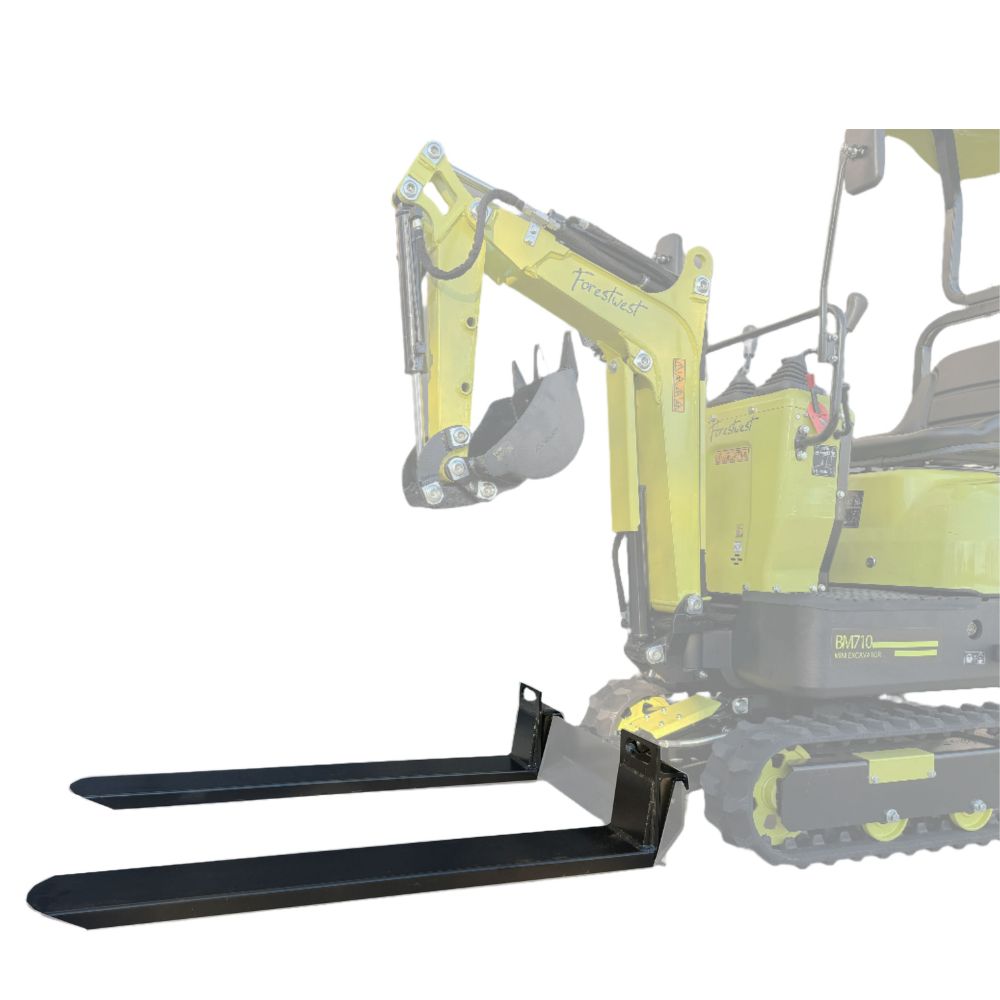

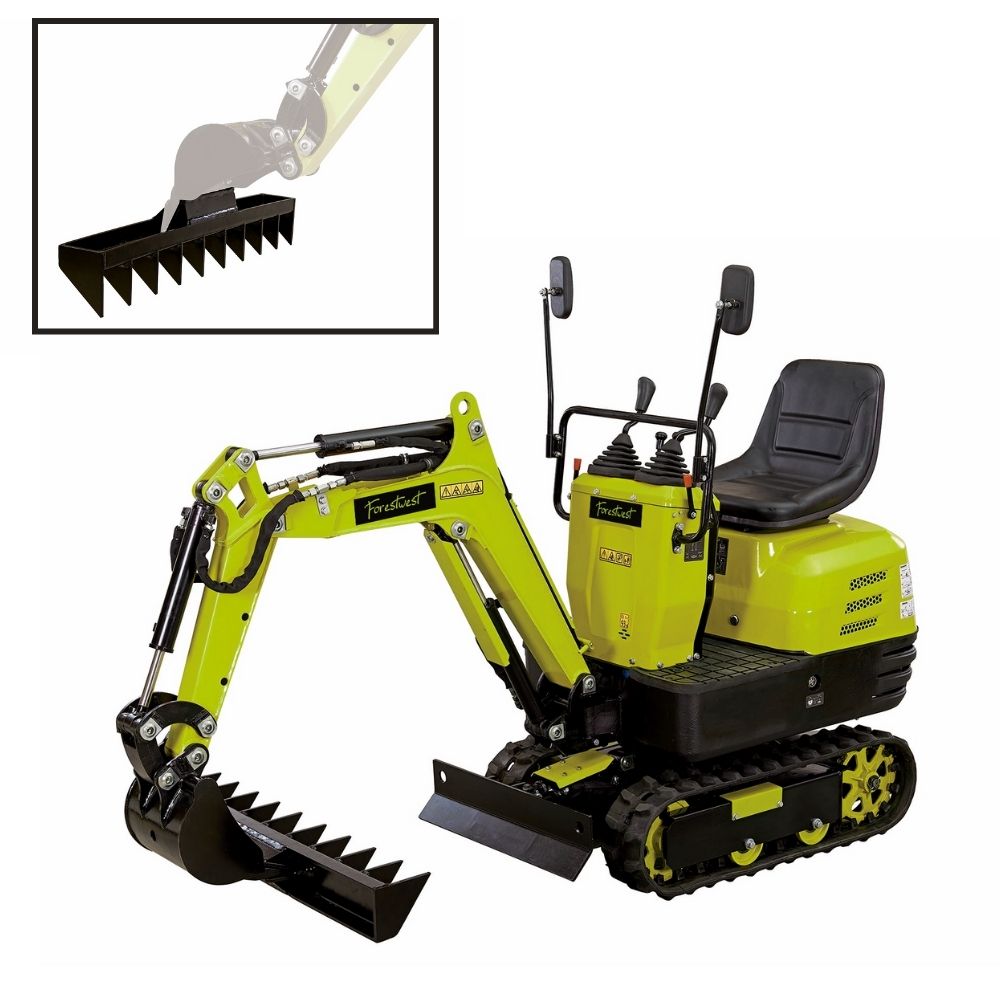

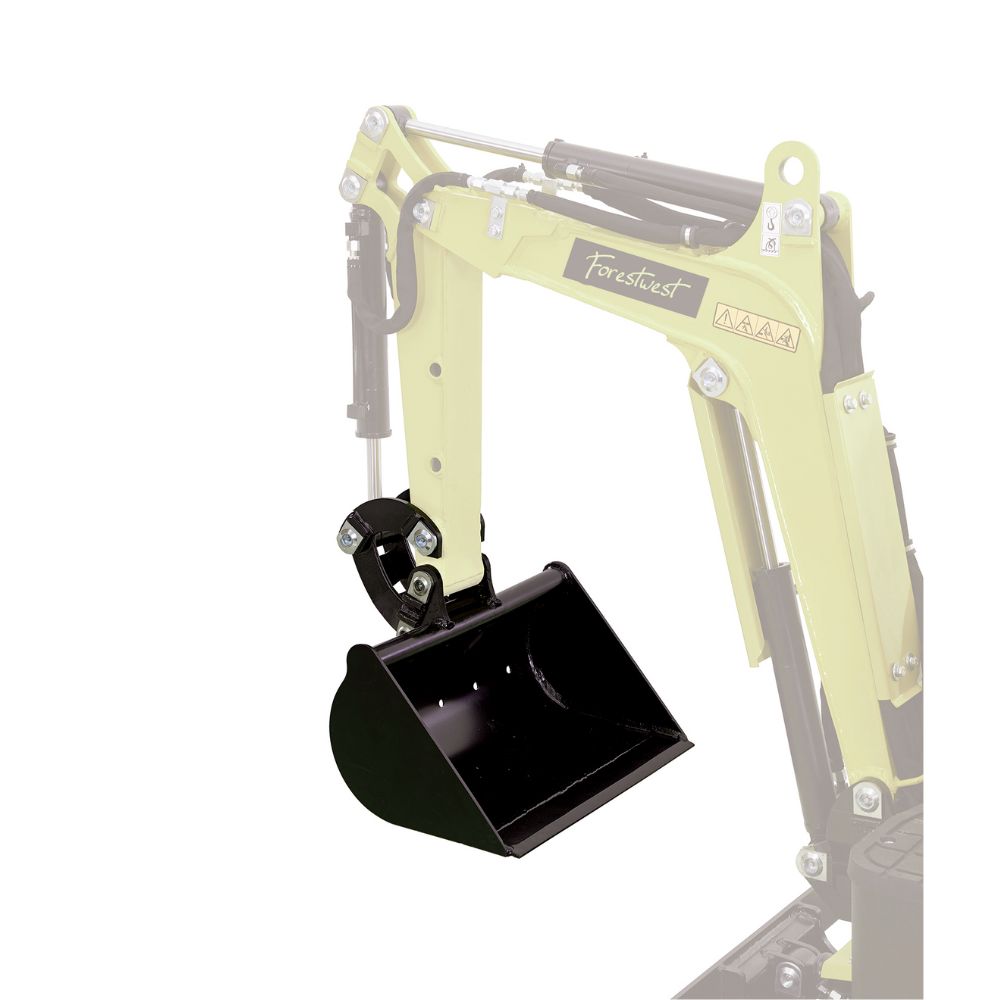

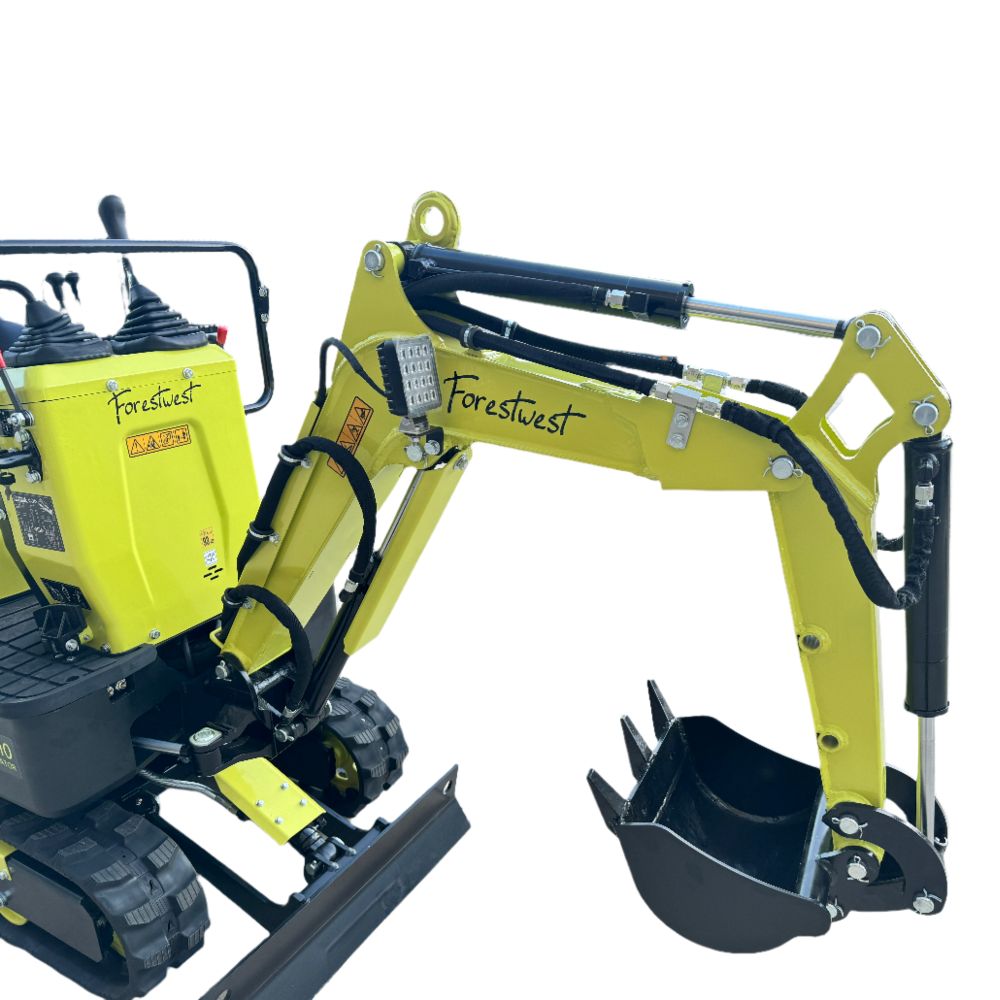

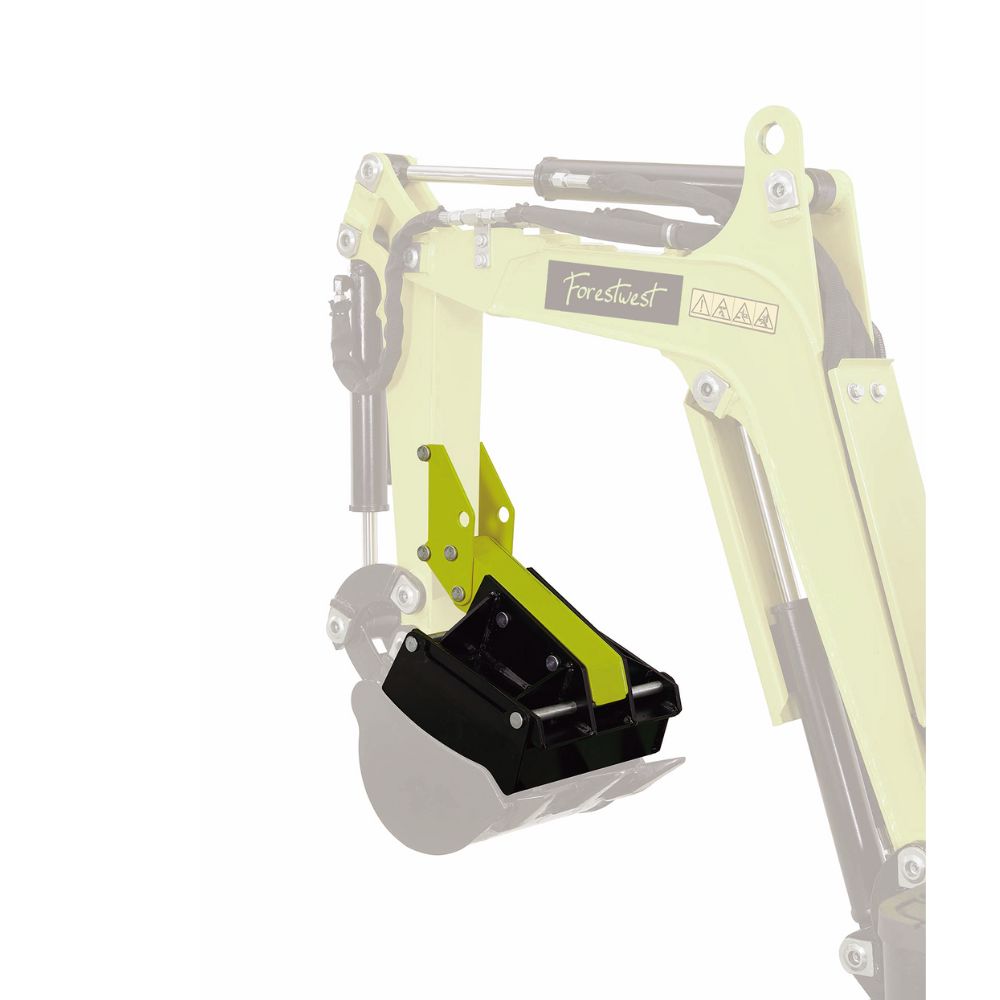

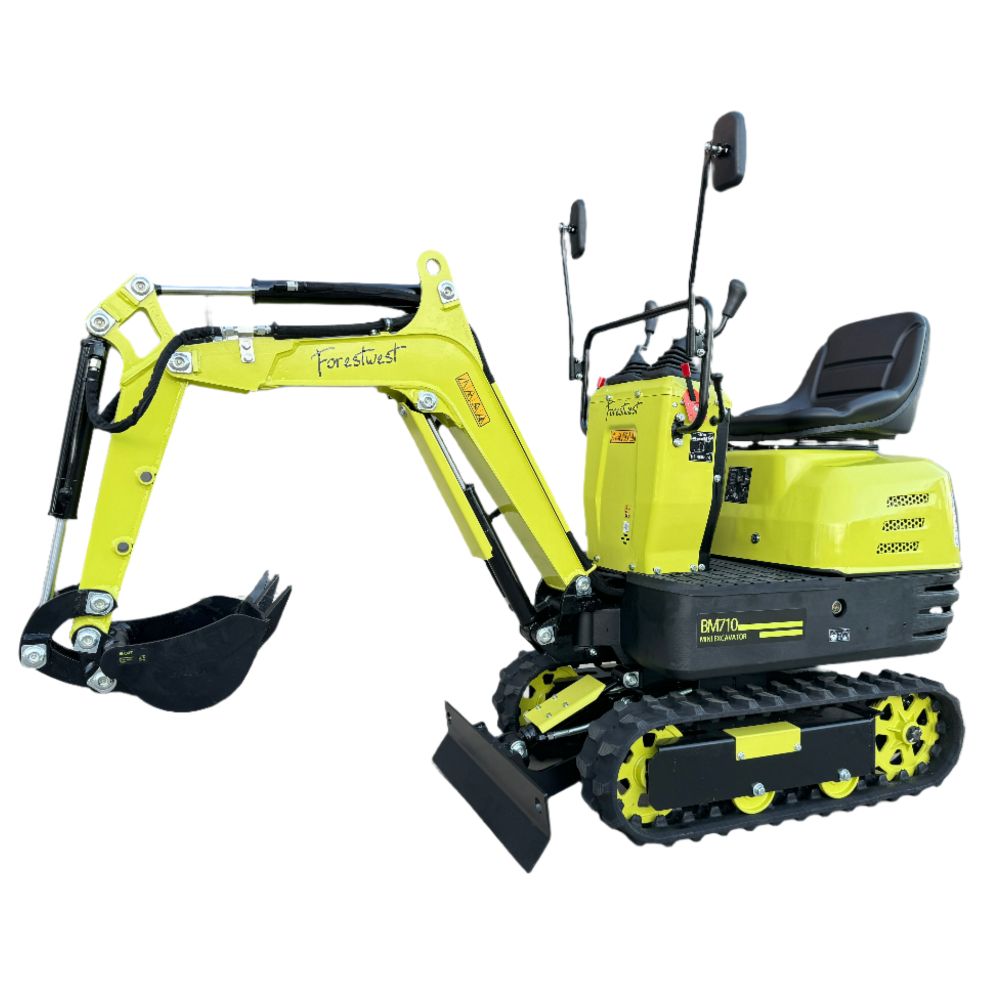

Introducing Forestwest Mini Excavator - Your Compact Powerhouse for Efficient Excavation! Featuring a 306cc high-torque engine with electric start, making it easy to start and powerful to use. When equipped with a bucket, the digging force can reach 8kN. This mini excavator is compact in size but suitable for heavy duty usage. Forestwest also offers other useful attachments, including a thumb and claw kit, a grading bucket, a pair of pallet forks, a canopy and a rake stick. Forestwest mini excavator is your ultimate solution for tackling a wide range of excavation tasks with ease, and with all the attachments, it will become one of your most versatile work mates.

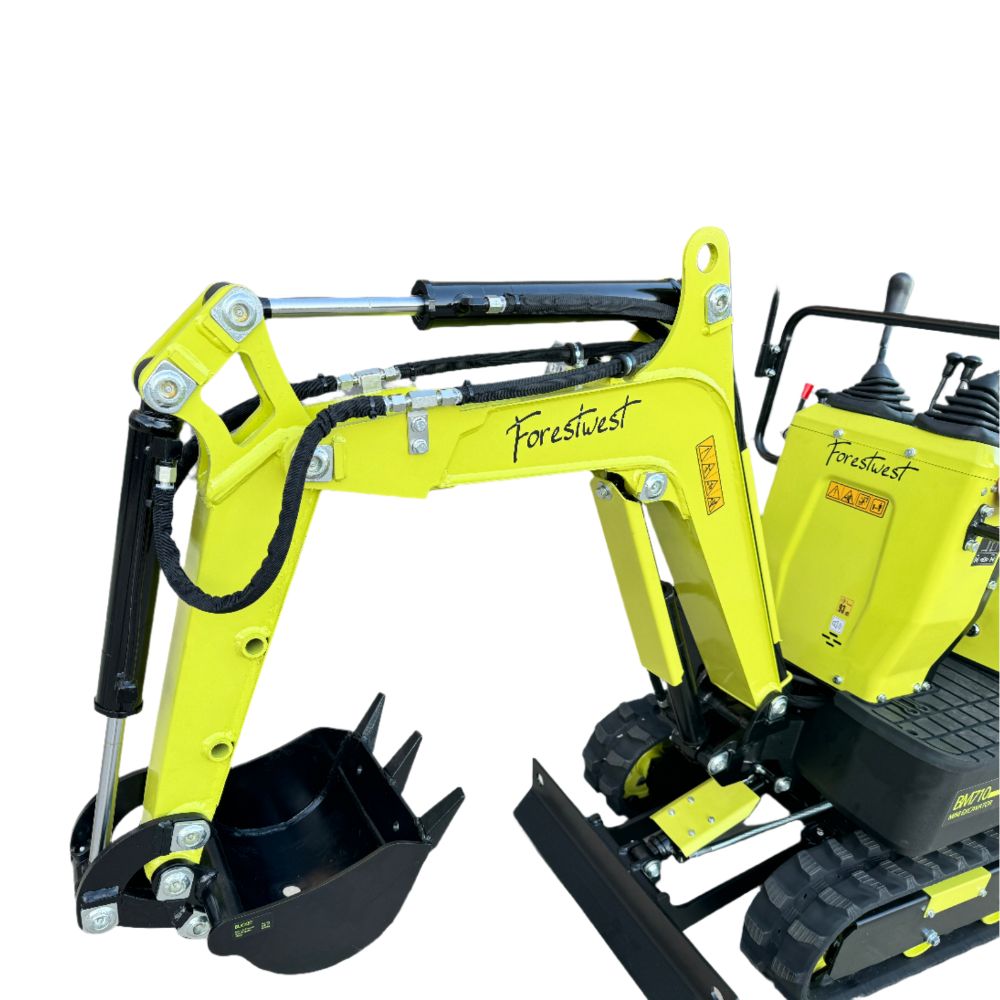

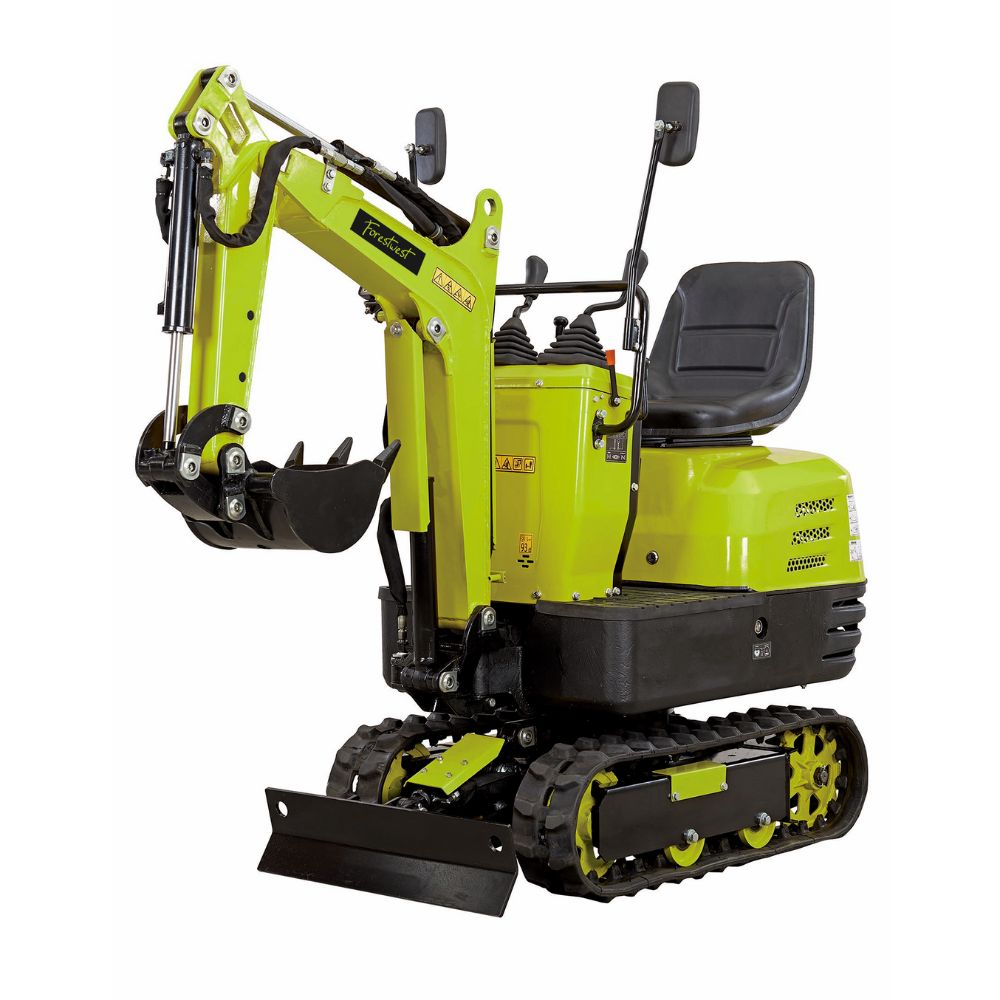

Forestwest 306cc Mini Excavator:
-

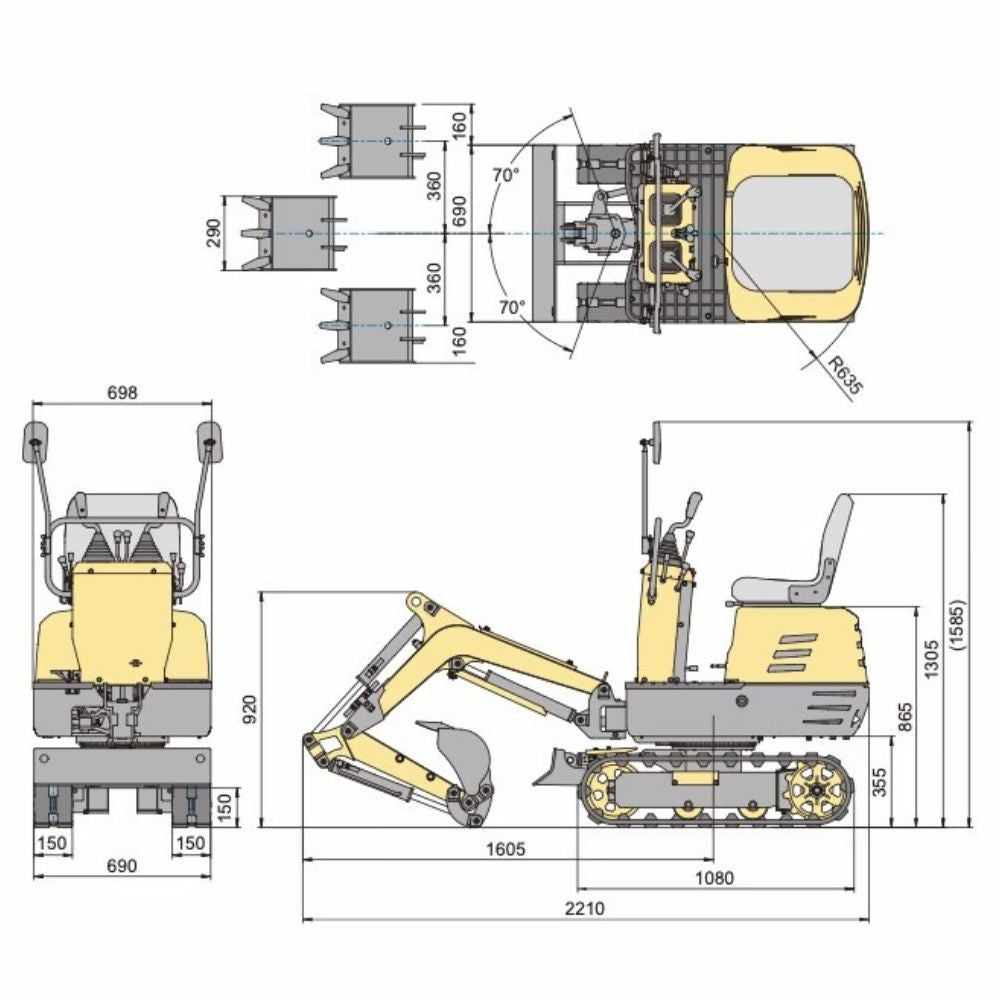

Compact model, around 28" wide, making it easy to maneuver around tight space
-
70 degree arm swing for effortless operation.
-
A variety attachments to choose from.

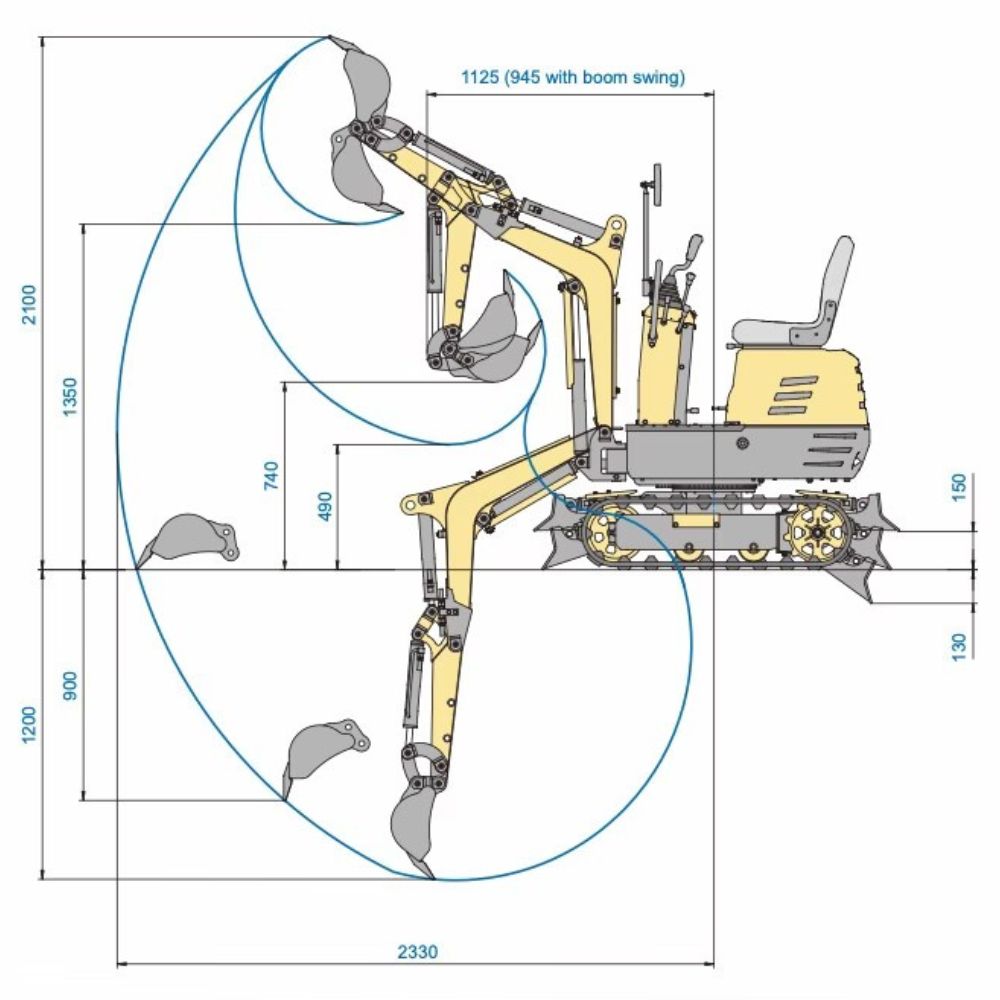

Specifications:
Model | Forestwest 0.6T Mini Excavator BM710 |
---|---|

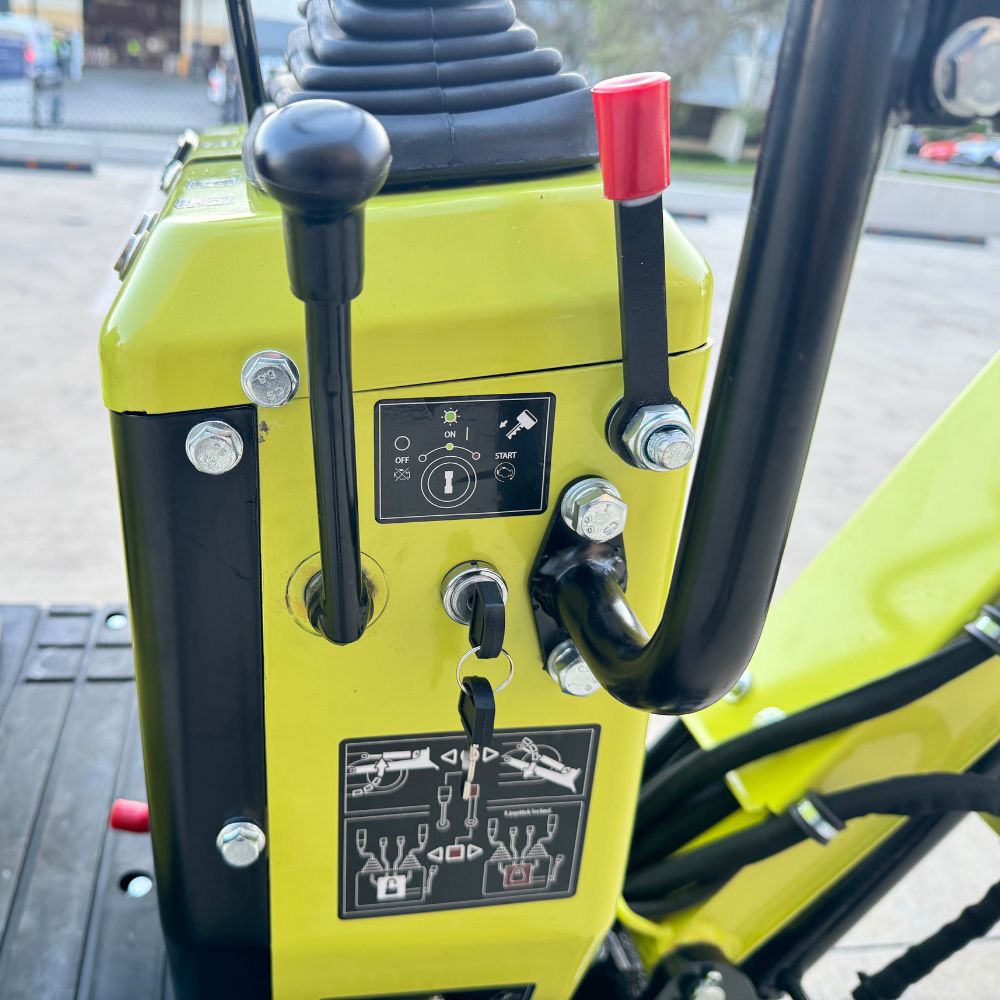

Engine | 306cc gas engine with electric start |
Operating Weight | 1239lbs |
Bucket Capacity | 0.388 cubit foot |
Bucket Width | 11.5" |
Digging Force (Arm) | 4.75 kN |
Digging Force (Bucket) | 8 kN |
Travel Speed | 1.06 mile/h |
Traction Force | 4.36 kN |
Swing Speed | 9.3 rpm |
Gradeability |
15° |
Ground Contact Pressure | 26.3 kPa |
Boom Swing | Left 70° / Right 70° |
Track Width | 6" |
Track Shoe Type | Rubber Crawler |
Pump Capacity | 2 x 9 L/min |
Hydraulic Reservoir | 12 L |
Hydraulic Pressure | 17.5MPa |

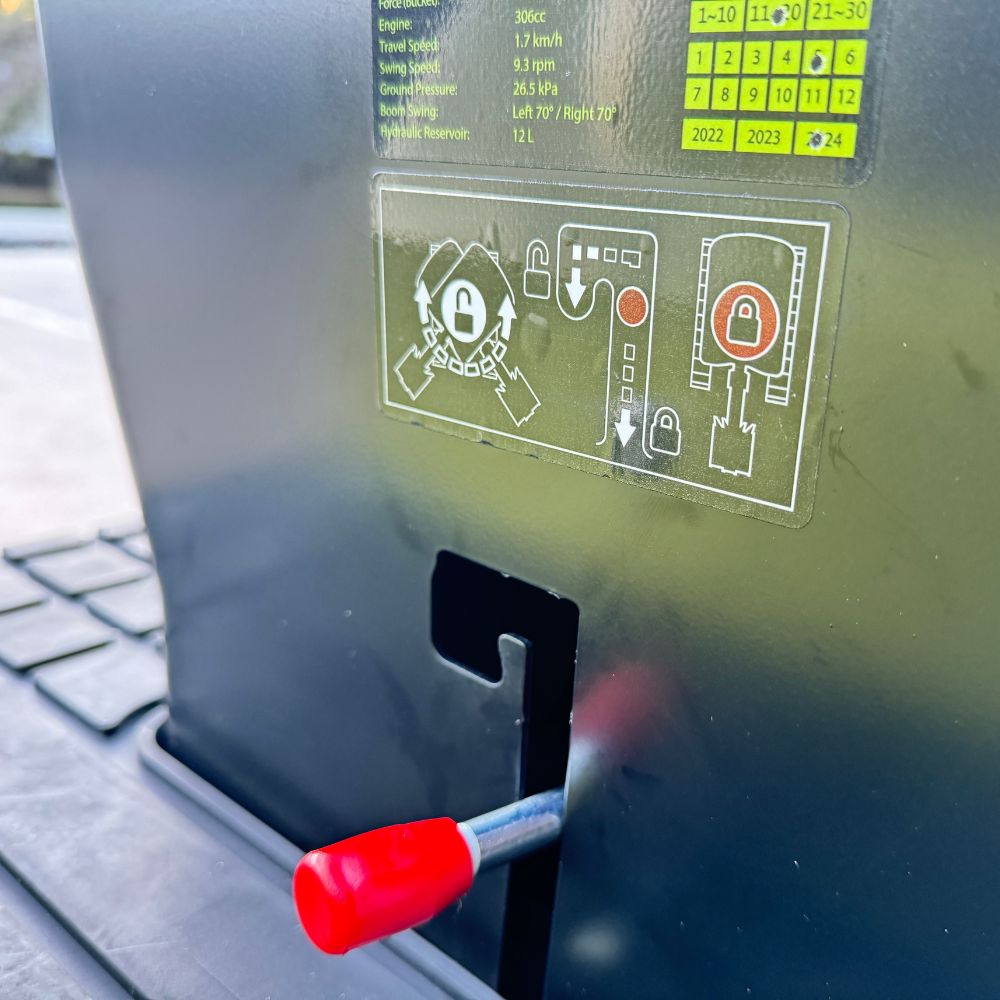

Parking Brake | Hydraulic lock |
Sound Pressure Level at Operator's Station | 82.5dB |
Vibration Value Arm | 7.12 ft/s^2 |
Vibration Value Whole Body | 25 ft/s^2 |
Packing Size | 90"x29"x50" |
N.W./G.W | 1239/1383lbs |
