20" Precision Compound Slide Table BF-20, FORESTWEST BM30277

Save $80.00
ForestwestSKU: BM30277

Price:
Sale price$619.00 Regular price$699.00
Stock:
In stock
Unlock Exclusive Gifts.

Powered by Salepify App

Estimate shipping

Description

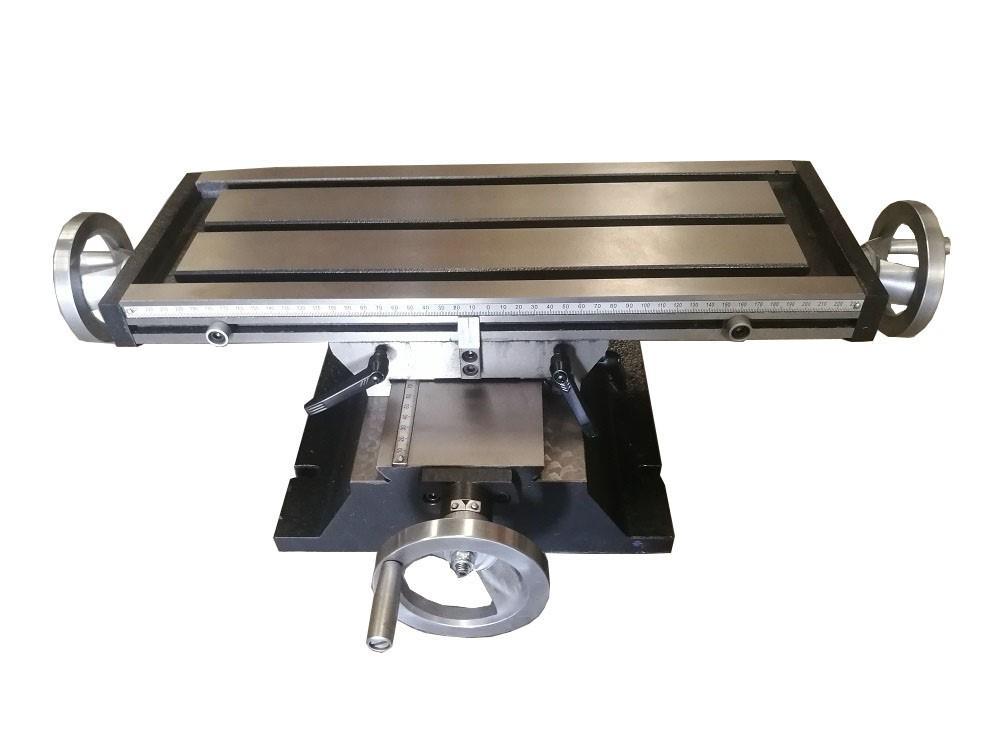

Introducing the Forestwest Precision Cross Slide Table - your go-to solution for precision machining tasks. With a generously sized 500 x 180mm (19-3/4" x 7-1/8") table, this cross slide table is engineered for excellence, featuring 280mm travel on the X-axis and 175mm travel on the Y-axis. Meticulously machined for optimal performance, this precision model boasts a dial indexed handle with 0.05mm graduation, ensuring accuracy in every move.

Upgrade your machining capabilities with the Forestwest Precision Cross Slide Table - the perfect blend of precision, durability, and versatility. Elevate your workshop experience with a tool that delivers exceptional performance for all your machining needs.

BF-20 Cross Slide Table Features:

  • Robust Construction for Heavy-Duty Work: Built with a sturdy construction, this cross slide table is designed to handle heavy-duty tasks, providing durability and stability for a variety of applications.

  • Spacious Table Size: The expansive 500 x 180mm (19-3/4" x 7-1/8") table offers ample space, accommodating a range of workpieces and enhancing versatility for diverse projects.

  • Precision at Your Fingertips: The precision model is equipped with a dial indexed handle featuring 0.05mm graduation, allowing for meticulous adjustments with ease, making it an ideal tool for precision machining.

  • Smooth and Accurate Slide Action: Experience precise and smooth sliding action with a generous slide range of X-280mm and Y-175mm, ensuring optimal performance for intricate tasks.

  • Efficient for Multi-Axis Work: Ideal for repetitive multi-axis work, this cross slide table significantly reduces setup time, enhancing efficiency and productivity in your machining processes.

  • Sturdy Construction for Heavy-Duty Use: The sturdy construction ensures that this cross slide table can handle heavy-duty work with ease, making it suitable for a wide range of applications.

  • Versatile Compatibility: Designed to be used on BF-20 milling heads, this cross slide table offers versatility and can be seamlessly integrated into milling machines and lathes, providing enhanced functionality.

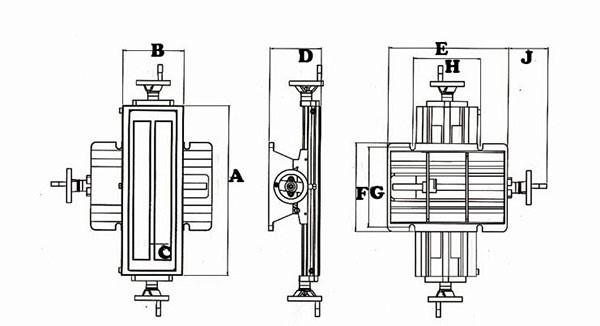

    Specifications:

    A

    B

    C

    D

    E

    F

    500mm

    180mm

    12mm

    151mm

    355mm

    260mm

    G

    H

    J

    X Travel

    Y Travel

    235mm

    200mm

    116mm

    280mm

    175mm

    Model Cross Slide Table BF-20 BM30277
    Net Weight/ Gross Weight  77 lbs/ 93 lbs
    Packing Size  26" x 17" x 7"
