Description

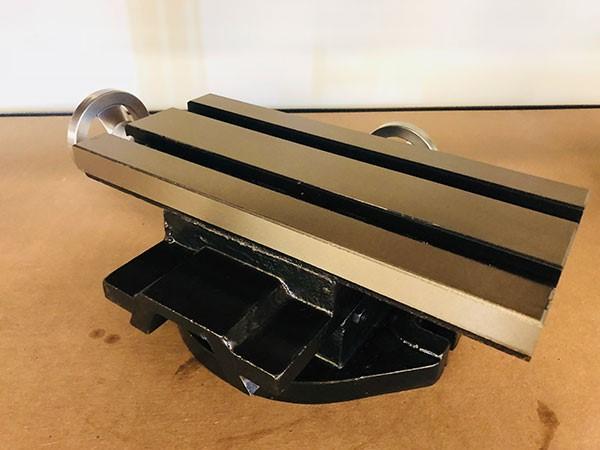

This Forestwest Cross Slide Table has a 300 x 140mm (11-3/4" x 5-1/2") table with 180mm travel on X-axis and 100mm travel on Y-axis. This compound sliding table is well machined and the travel is smooth and accurate. This is a precision model with the dial indexed handle in 0.05mm graduation.
The cross slide table is ideal for repetitive multi-axis work, it will highly reduce the setup time. The construction is sturdy and suitable for heavy-duty work.
Features:
- Sturdy construction for heavy-duty work.
- Precise and smooth slide action, slide range X-180mm x Y-100mm.
- A 300 x 140mm (11-3/4" x 5-1/2") solid table.

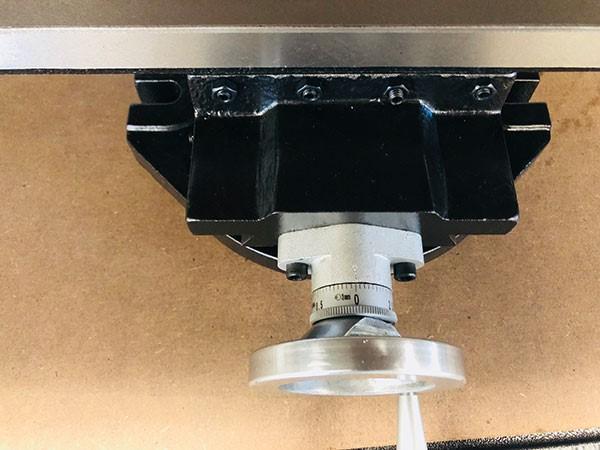

- Accurate sliding with 0.05mm Graduation.
Specifications:
| Model | FORESTWEST BM30272 |
| Table Size | 300 x 140mm (11-3/4" x 5-1/2") |
| X-travel | 180mm |
| Y-travel | 100mm |
| Graduation | 0.05mm |
| Net Weight/ Gross Weight | 40 lbs/ 42 lbs |
| Packing Size | 18" x 16" x 7" |
| Warranty | 1 Year |
