FORESTWEST 30201, 7" Precision Compound Slide Table With Fixed Base

Save $10.00
ForestwestSKU: BM30201

Price:
Sale price$189.00 Regular price$199.00
Stock:
In stock

Estimate shipping

Description

This Forestwest Cross Side Table has a 185 x 100mm (7-1/4" x 4") table with 85mm travel in X-axis and 70mm in Y-axis. This compound table is well machined and the travel is smooth and accurate. This is a precision model with the dial indexed handle in 0.01mm graduation.

This cross slide table is ideal for repetitive multi-axis work, it will highly reduce the setup time. The construction is sturdy and suitable for heavy-duty work.

Features:

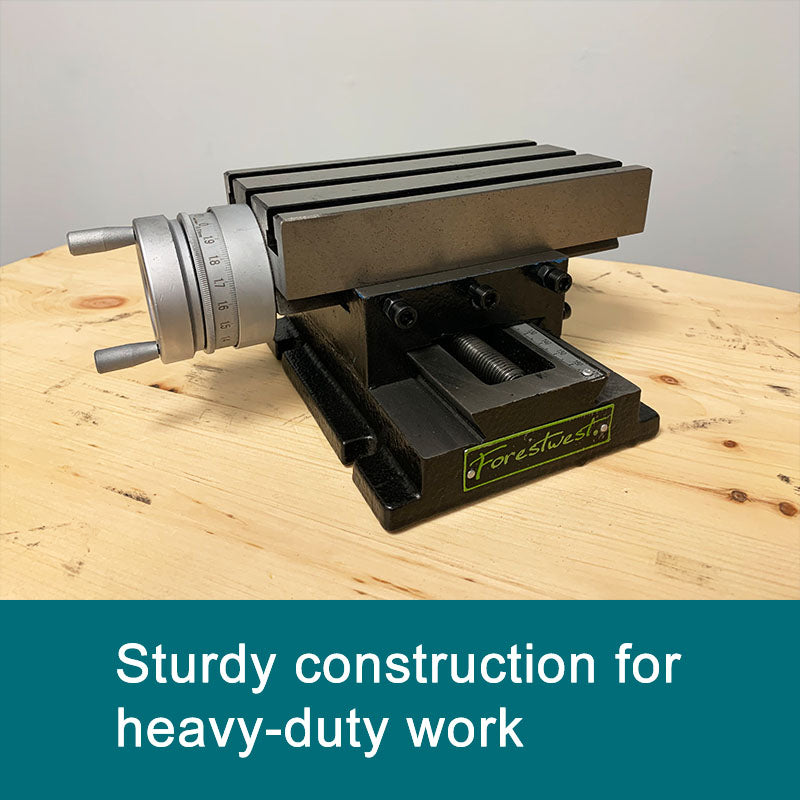

  • Sturdy construction for heavy-duty work.

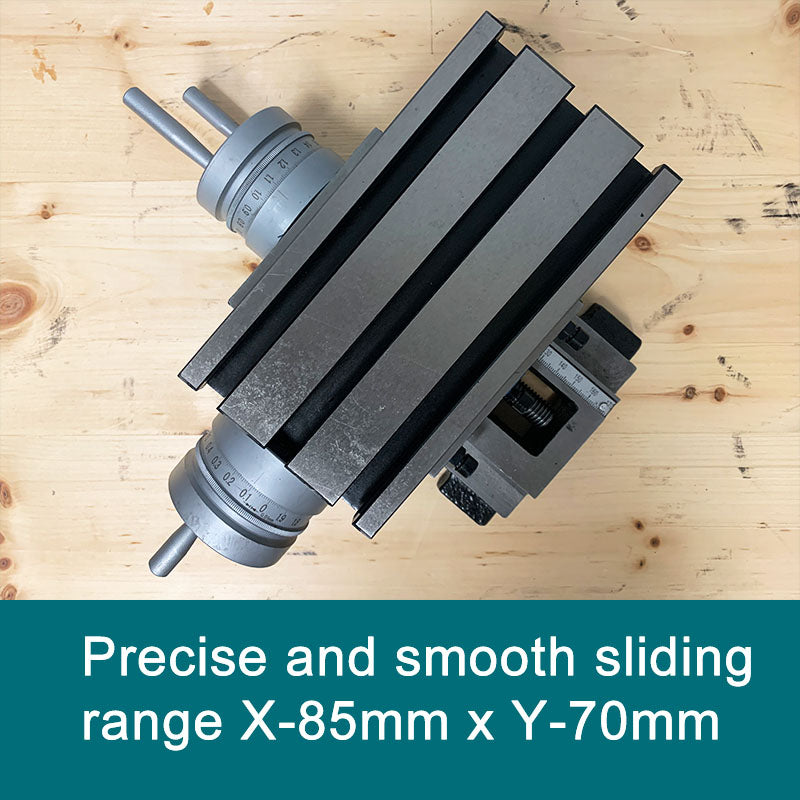

  • Precise and smooth sliding action, sliding range X-85mm x Y-70mm.

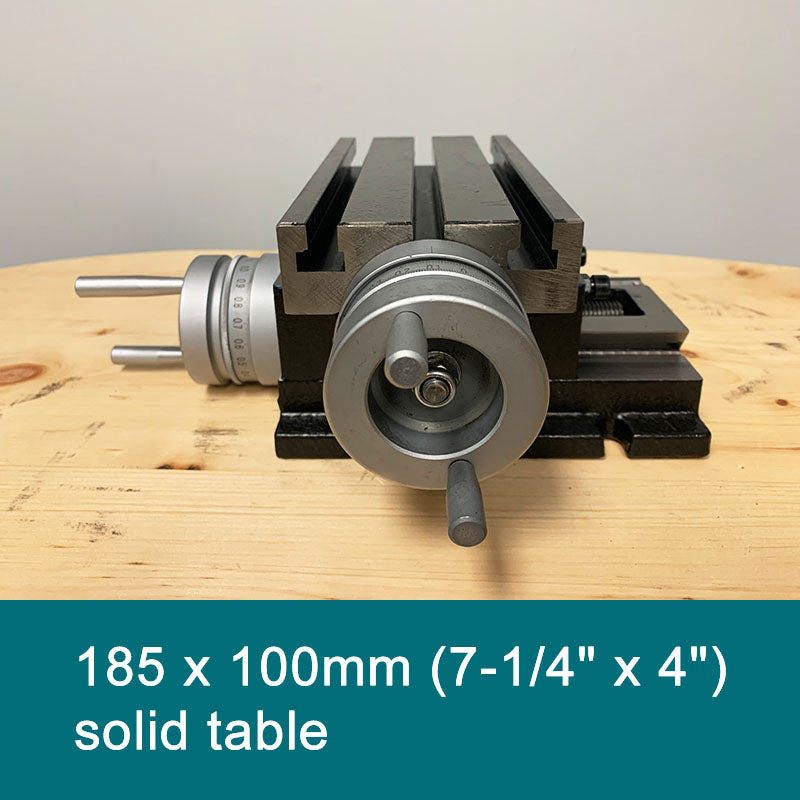

  • A 185 x 100mm (7-1/4" x 4") solid table.

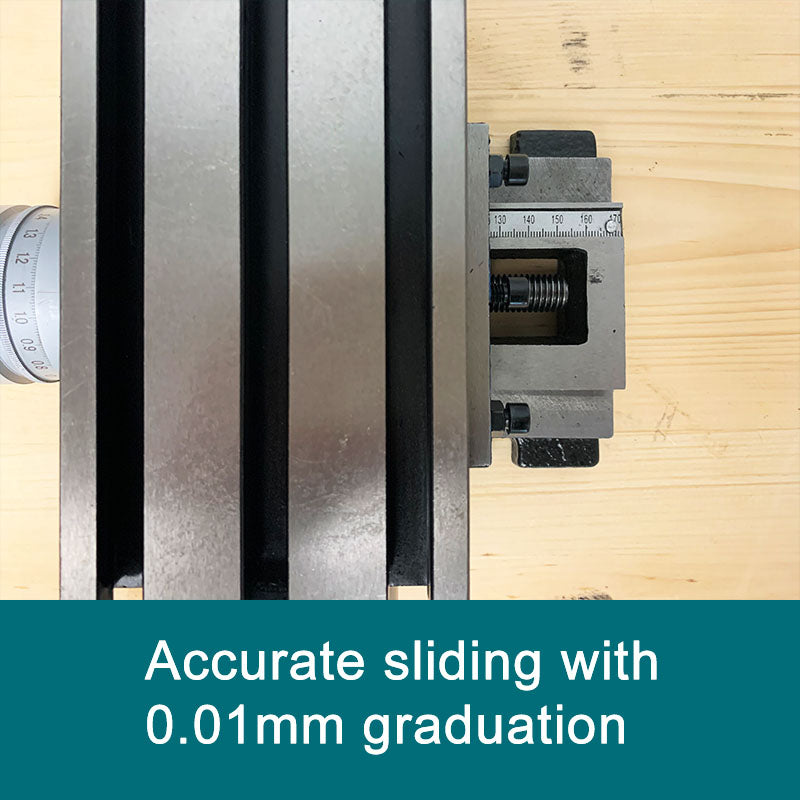

  • Accurate sliding with 0.01mm Graduation.

    Specifications:

    Model FORESTWEST 30201
    Table Size  185 x 100mm (7-1/4" x 4")
    X-travel  85mm
    Y-Travel  70mm
    Graduation 0.01mm
    Net Weight/ Gross Weight  23 lbs/ 26 lbs
    Packing Size 11" x 11" x 7"
