Description
The FORESTWEST 17" Floor Drill Press BM20115 is a powerful and reliable tool designed for precision drilling in a variety of materials. Built with durability and performance in mind, this drill press is perfect for both professional workshops and DIY enthusiasts.
17" Floor Drill Press Features:

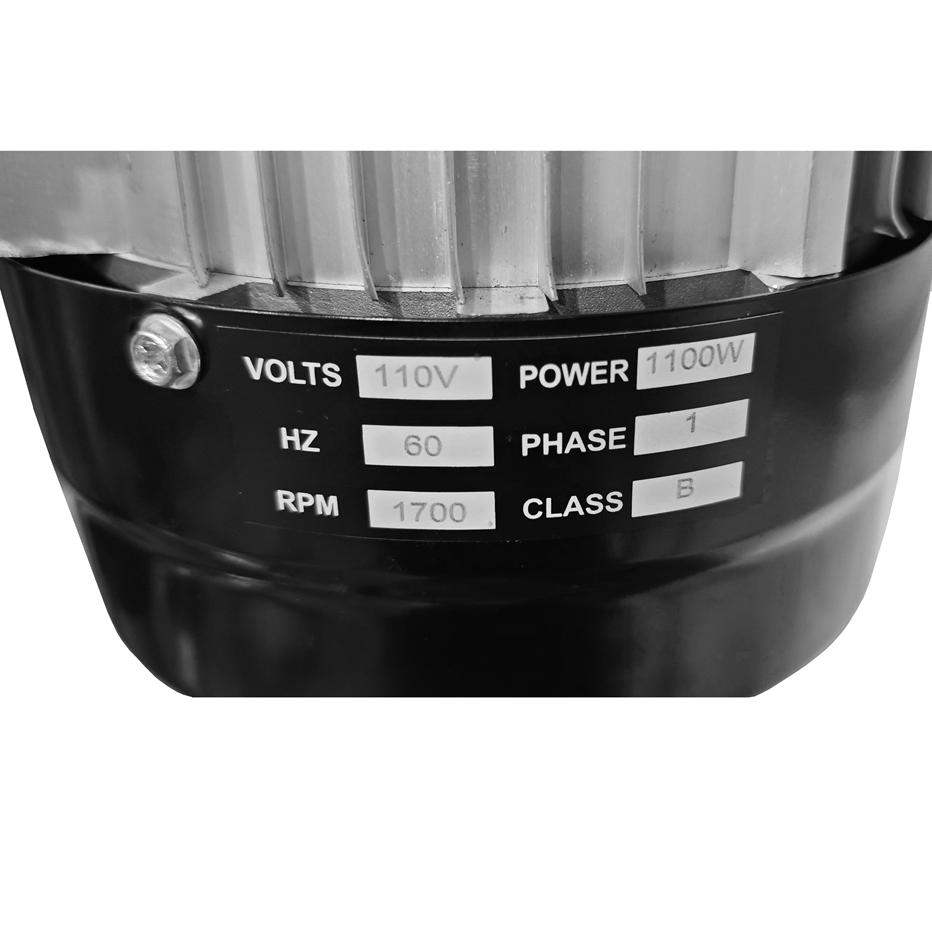

- 1100W 110V/60Hz S1 copper wire motor, powerful & reliable for long time use

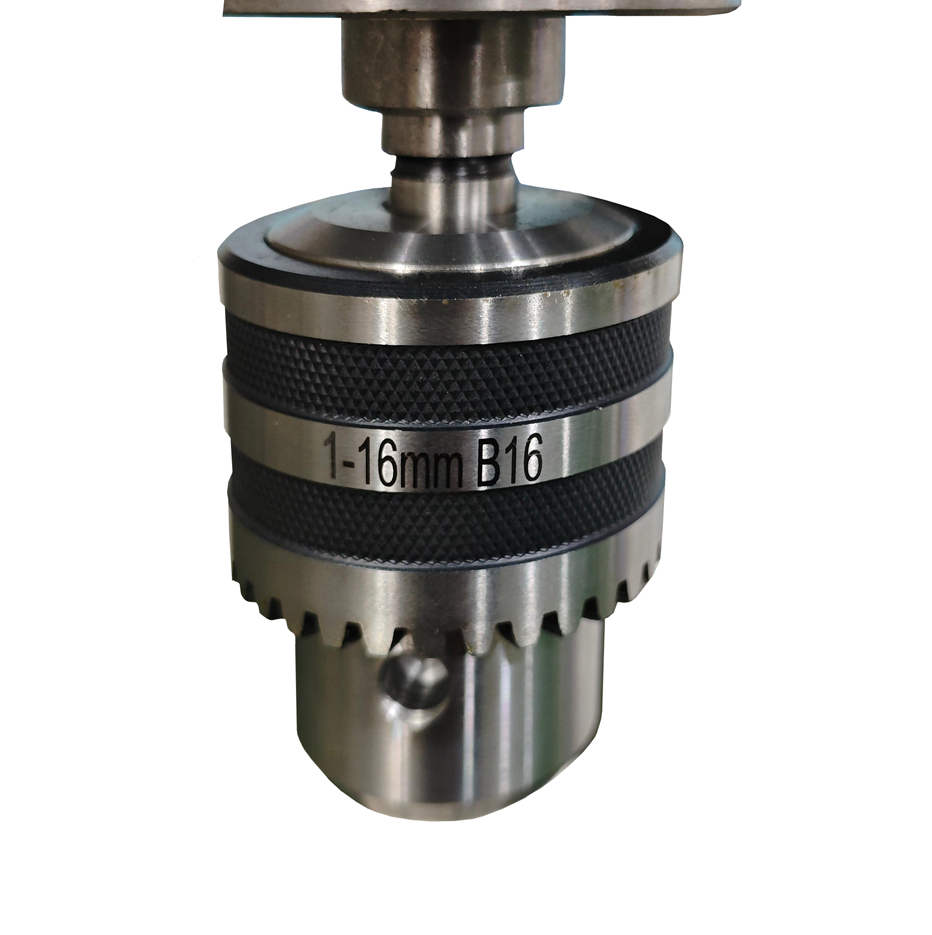

- 17" (430mm) swing, 5/8" (16mm) chuck
- Standard MT2 tapper

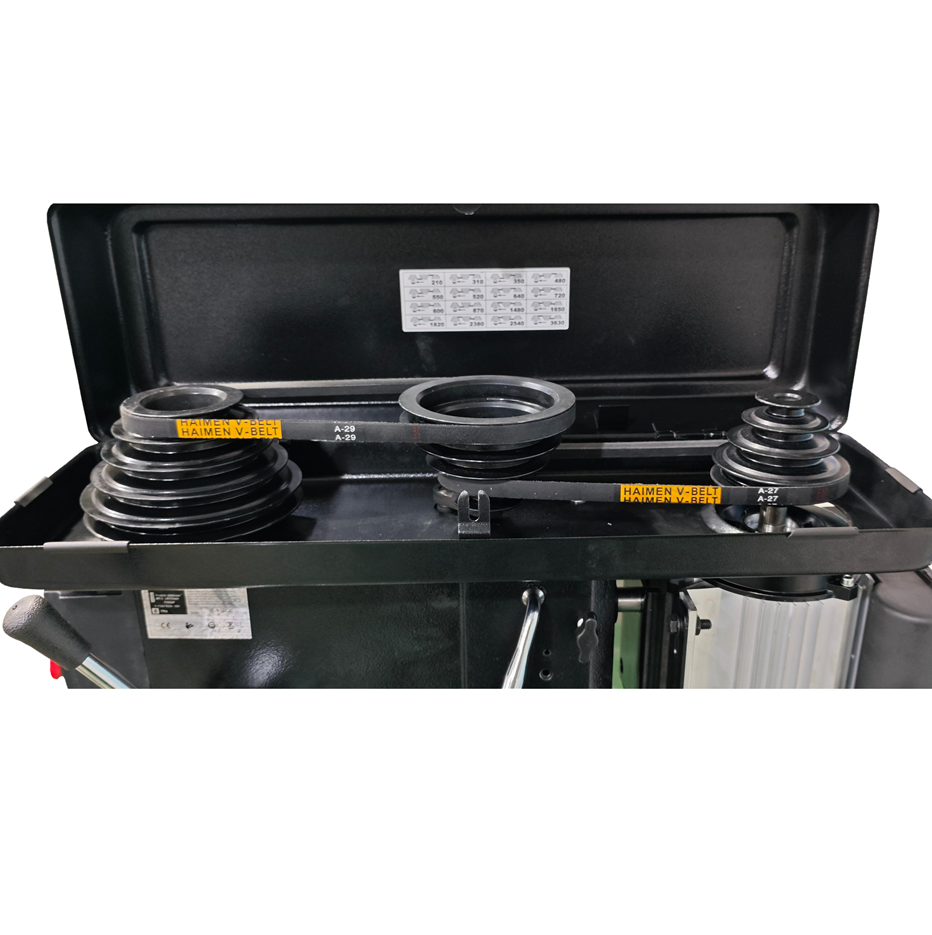

- 16 speed, ranging from 210 to 3630rpm
- Solid cast iron base and table, rack & pinion design for more stable action
Specifications:
| Model | FORESTWEST 17" Floor Drill Press BM20115 |
| Motor | 1.5HP 1100W, 110V/60hz, 10Amps S1 |
| Chunk | 5/8" 16mm |
| Drill Capacity | 1" 25" mm |
| Spindle Travel | 3.15" 80mm |
| Spindle Taper | MT2 |
| Speed Change | 16 |
| Spindle Speed | 210 - 3630 RPM |
| Swing | 17" 430mm |
| Working Table | 14" x 14" 356x356 mm |
| Table Tilt | -45/45° |
| Max. Distance from Spindle to Table | 27" 685mm |
| Base | 20" x 13.6" 505x345mm |
| Max. Distance from Spindle to Base | 46.3" 1175mm |
| Column | Ø3.15" 80mm |
| Total Height | 64.4" 1635mm |
| Rack & Pinion | Yes |
| Net Weight/ Gross Weight | 178.6 lbs/ 189.6lbs 81/86kg |
| Packing Size | 55.5" x 21.3" x 9.8" 1410x540x250mm |
